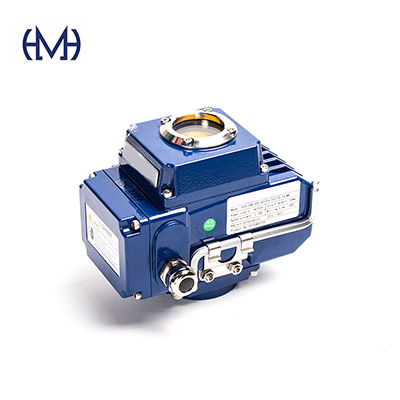

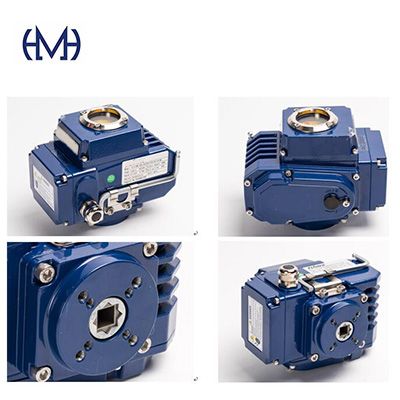

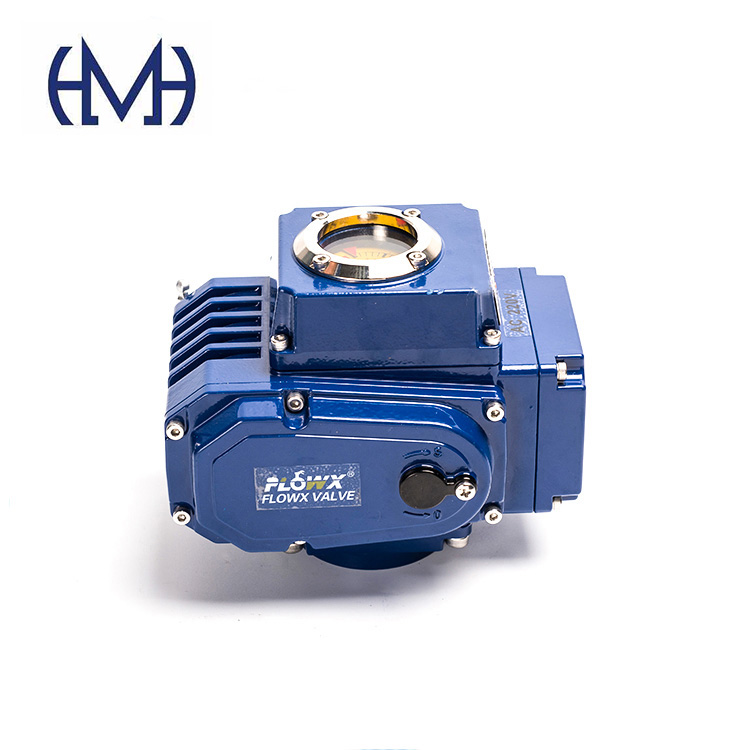

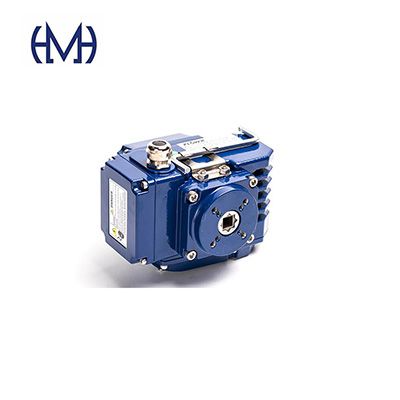

4-20ma Inteligent Regulator Electric Actuator
Technical Parameter for Actuator
● Auto-reset thermostatic protection in the motor
● Open/close limit switch with cams adjustable along the whole stroke
● Auxiliary limit switches with cams adjustable along the whole stroke
● Safety adjustable mechanical limit switches
● Graduated visual position indicator

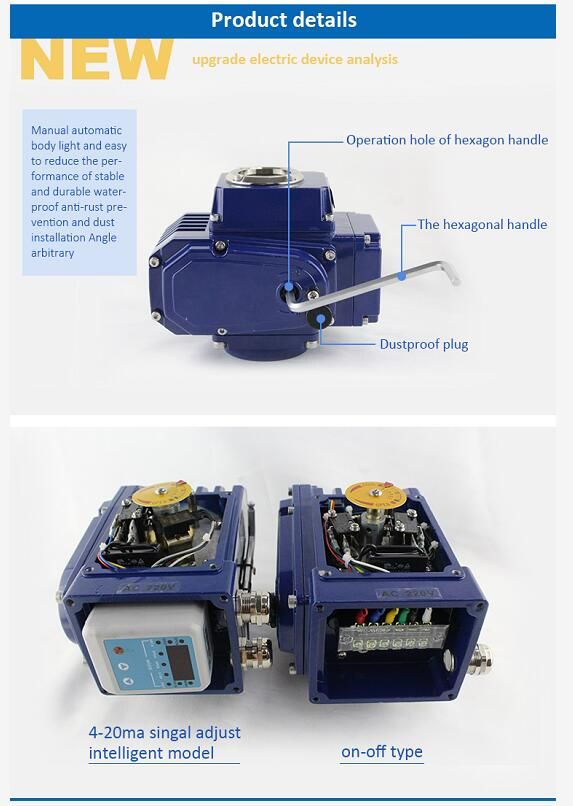

● Detachable lever for manual operation
● Electric connections with screw terminals
● Locking of supply cables by means of cable presses
|
Control Mode
|
Function
|
|
ON-OFF Type
|
Feedback: the Active Contact Signal, Passive Contact Signal, Resistance, 4-20mA
|
|
Regulation Type
|
Input & Output Signal: DC 4-20mA, DC 0-10V, DC 1-5V
|
|
Field Operation
|
The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus
|
|
Shell Material
|
Die-Cast Aluminum Alloy (Powder Coated)
|
|
Lifespan
|
100,000 (Ten Thousand) Times
|
|
Output Torque
|
50 to 4000Nm
|
|
Angle of Rotation
|
90° ±4°
|
|
90° Cycle Time
|
15S/30S/60S
|
|
Optional Voltage
|
DC24V (±10%), AC110-220V, 50/60Hz
|
|
Insulation Resistance
|
DC24V: 100MΩ/250V; AC110/220V/380V: 100MΩ/500V
|
|
Withstand Voltage
|
DC24V: 500V; AC110/220V: 1500V; AC380V: 1800V 1Minute
|
|
Protection Class
|
IP65
|
|
Explosion Proof
|
EX d II BT4
|
|
Optional Accessories
|
Over Torque Protectors, Dehumidify Heater, Stainless Steel Coupling & Yoke
|
|
Ambient Temp.
|
Range from -20 to +60°C (For Use In Temperatures Below 0°C, We Suggest Anti-Condensate Elements)
|
If want to know more details ,please kindly click to download the pdf file as below:
