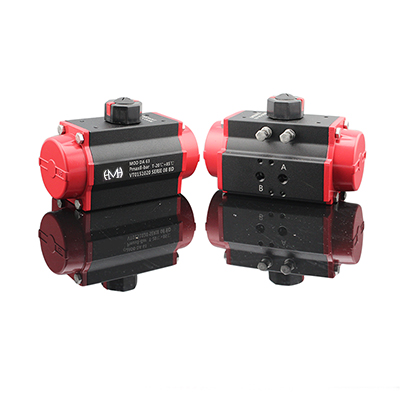

Single acting double acting rotary pneumatic actuator
MP SERIES PNEUMATIC ACTUATOR,DOUBLE ACTING/ SINGLE ACTING 0-90° ROTARY
| Rotation angle: | 0° to 90°. Adjustable +5° to -5° |
| Pressure: | 5 to 10 bar |
| Temperature: | -20° C. to +80° C. |
| Work media: | Air (PNEUROP/ISO Class 4) |
| Connections: | ISO 5211 for brackets |
| DIN 3337 coupling (star shaped) | |
| VDI/VDE 3845 for accessories | |
| NAMUR for work media | |
| Air supply: | 1/4" - BSPP |
| Surface material: | Hard anodized - 40μm |

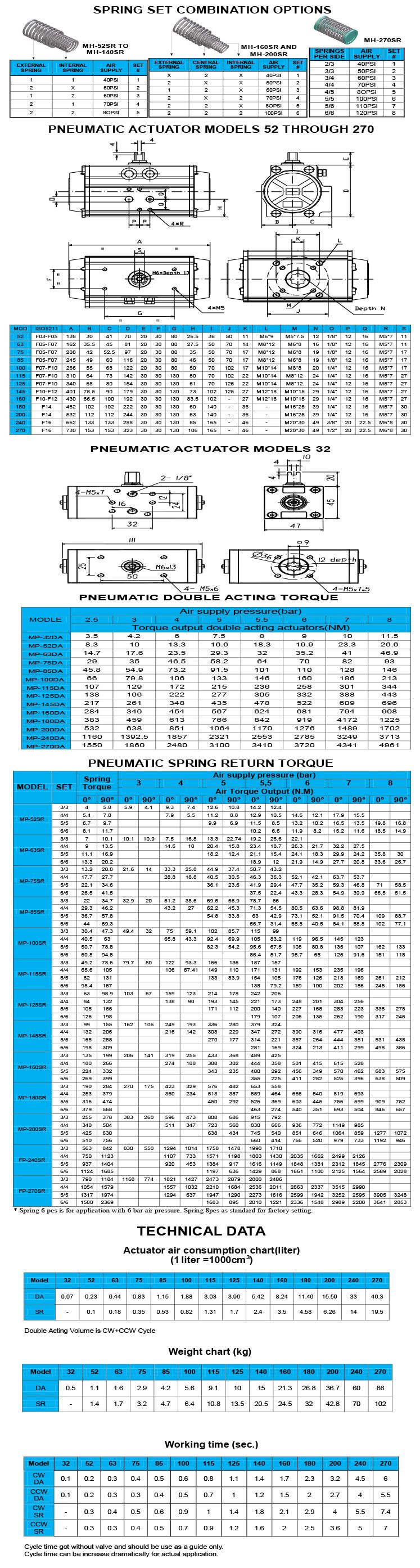

•All listed output torques are expressed in inch pounds of torque (in. lbs.).
•Charts for available air pressure are expressed in pounds per square inch (P.S.I.).
MH actuators offer ±5° adjustment in the open and closed positions on DA52 through DA-125 models. For all other models, adjustment is in the open position only
The closed position is 0° fixed. Optional retrofit kits are available to allow for adjustment in both open and closed positions on the DA-160, DA-200 and DA-270 models.
Please kindly view the more details ,please refer to the attmached pdf file.
