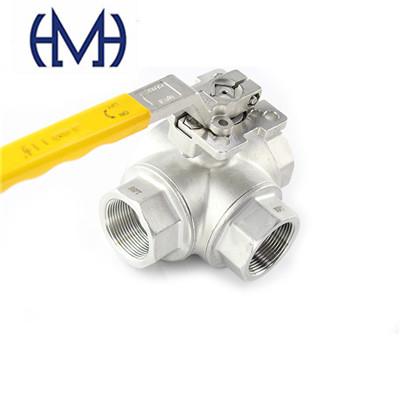

Automated Stainless steel 3way Thread Ball Valve

• L-Port and T-Port Configurations
• Threaded End connections
• 1/2" thru 4"

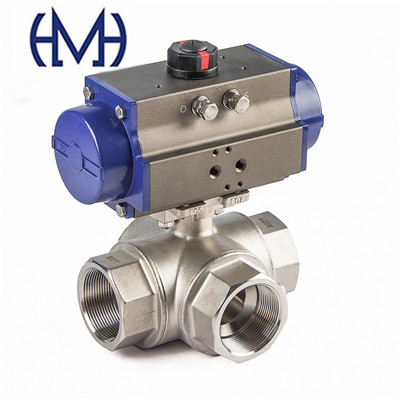

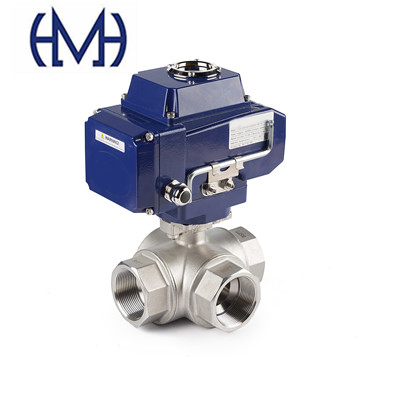

• Electric and pneumatic Actuators
• 4 Seat Design for high cycling
• Cost-efficient Actuators
• Secure True ISO Mounting Pad
• Most models are direct mount for lowest possible stack up height
• Ported 3 way ball valves offer excellent versatility for mixing and diverting applications

• ---



• Features of Actuators
  • Heavy Duty Rack of pinion Design
  • Spring return or Double acting
  • Open and closed adjustment stops
  • Ture NAMUR accessory and ISO mounting
  • Visual indicator,Top Mount Indicator
  • High temperature and corrosion resistant models available
  • Soleniods,limit swithes,postioners and other accessories are available
  • Full adjustable limit switchs allow for fine control of on-off postions
  • All electric actuators are available for modulating(4-20ma control) or on-off  service
  • Motor has thermal overload proection
  • Running time:9s/13s/15s/30s/50s/100s/150s
  • Heavy duty gear train motor with permanent lubrication
  • ISO Bottom mounting or direct mount actuation with true ISO valves on most models

    ---

  ---



  ---
