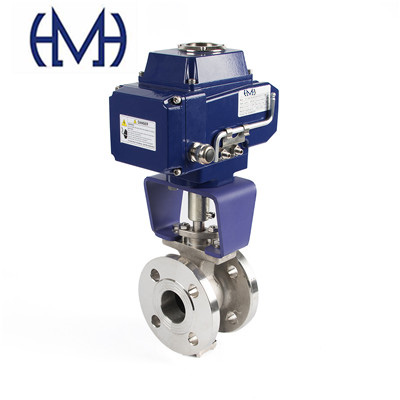

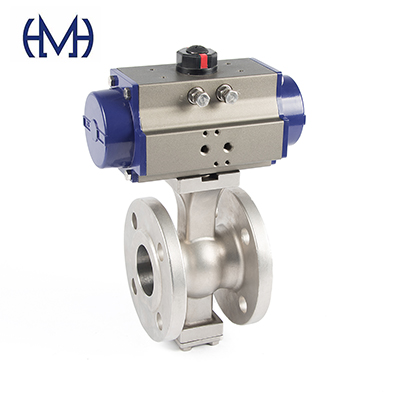

Automated High platform V type Stainless steel Ball Valve
Feature:
- 1/2" thru 8"
- Water or Flange Connection
- 150LB Working pressure
- Temperature rating varies from with o-ring material
- With characterized V-port,slotted ports or custom port
- V-control Ball provides accurate flow control
- Available in 3-piece and Flanged Body,V-Control Valves offer superior range ability,repeatability and high flow capacity
- Designed for easy automation
- Ideal control element in process piping systems
- Inspection and testing meet API598
Features of Actuators
- Heavy Duty Rack of pinion Design
- Spring return or Double acting
- Open and closed adjustment stops
- Ture NAMUR accessory and ISO mounting
- Visual indicator,Top Mount Indicator
- High temperature and corrosion resistant models available
- Soleniods,limit swithes,postioners and other accessories are available
- Full adjustable limit switchs allow for fine control of on-off postions
- All electric actuators are available for modulating(4-20ma control) or on-off service
- Motor has thermal overload proection
- Running time:9s/13s/15s/30s/50s/100s/150s
- Heavy duty gear train motor with permanent lubrication
- ISO Bottom mounting or direct mount actuation with true ISO valves on most models

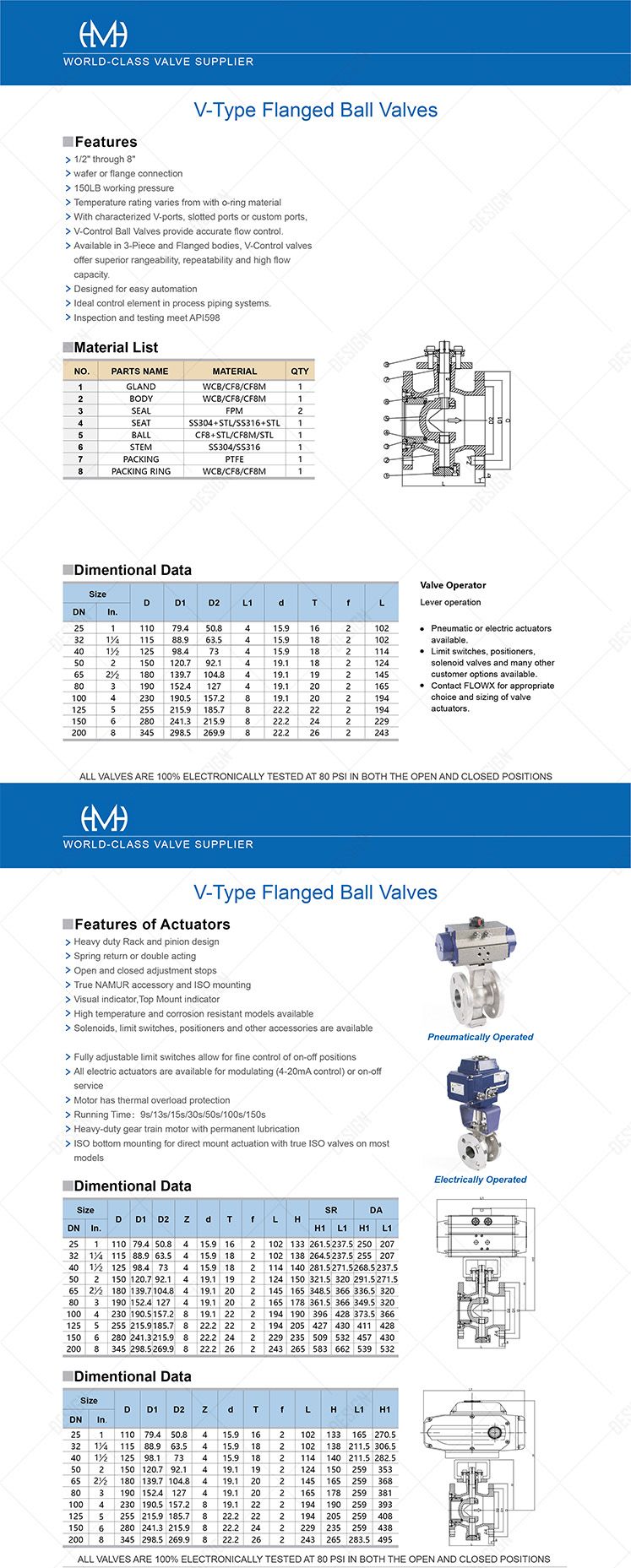

Click here to know more details as below
http://www.mihemachinery.com/uploadfile/2018/0621/20180621063456977.pdf
http://www.mihemachinery.com/uploadfile/2018/0621/20180621063514555.pdf
http://www.mihemachinery.com/uploadfile/2018/0621/20180621063533742.pdf
http://www.mihemachinery.com/uploadfile/2018/0621/20180621063546361.pdf
