ANSI150 LT Lug Butterfly Valve DN50-DN1200 PN25
- Product Description:

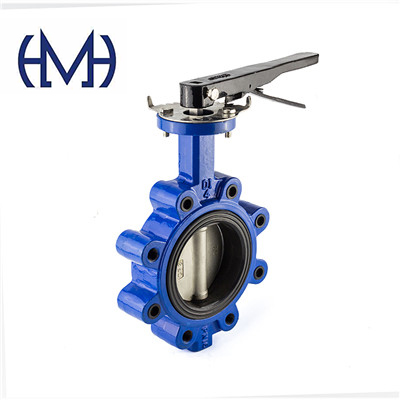

1.Lug type is also called single plate butterfly Valve,lug type butterfly valve
2.It is simple strucuture of the regulating valve,that can be used for low pressure pipeline medium swtiching means that the closing element(valve or butterfly valve) is a disk,and rotates around the valve shaft to open and close
3.it can be used to control the flow of various types of fluids such as air,water,steam,various corrosive media,mud,oil,liquid metals, in the pipeline mainly cut off and throttling effect.LT Lug Butterfly Valve opening and closing device is a disc-shaped butterfly plate, roating around it own axis in the valve body ,so as to achieve the purpose of opening and closing or adjusting.
- Main Specification:

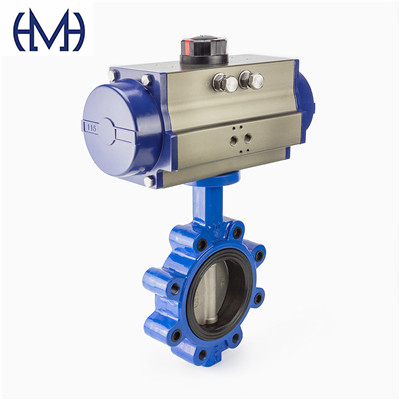

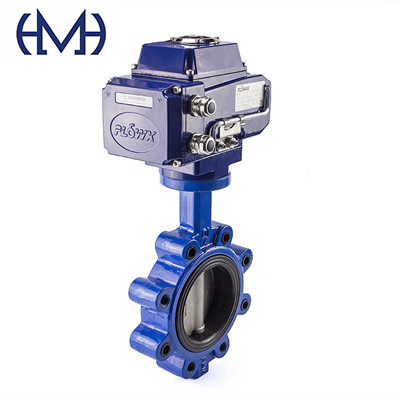

| Nominal Size | Operated type | Working pressure | Seal material | Disc Materials | Body Material | Medium | Appliaction | Connection standard |
| DN50 | Pneumatic actuator | PN25 | -15-85℃ | EPDM | SS304/316 | Water | Water Treatment | PN10/PN16 |
| DN65 | Electric actator | -25-150℃ | PTFE | Nylon | Oil | Munciliple Engineer | ANSI150 | |
| DN80 | Manual handle lever | -18-85℃ | NBR | Ductile Iron | Gas | Pharmacy | DIN16 | |
| DN100 | Worm Gear | -25-200℃ | VITON | 2205 | Powder | Auto industry | JIS10K/16K | |
| DN125 | 2207 | FGDD | ||||||
| DN150 | 1.4529 | |||||||
| DN200 | ||||||||
| DN250 | ||||||||
| DN300 |

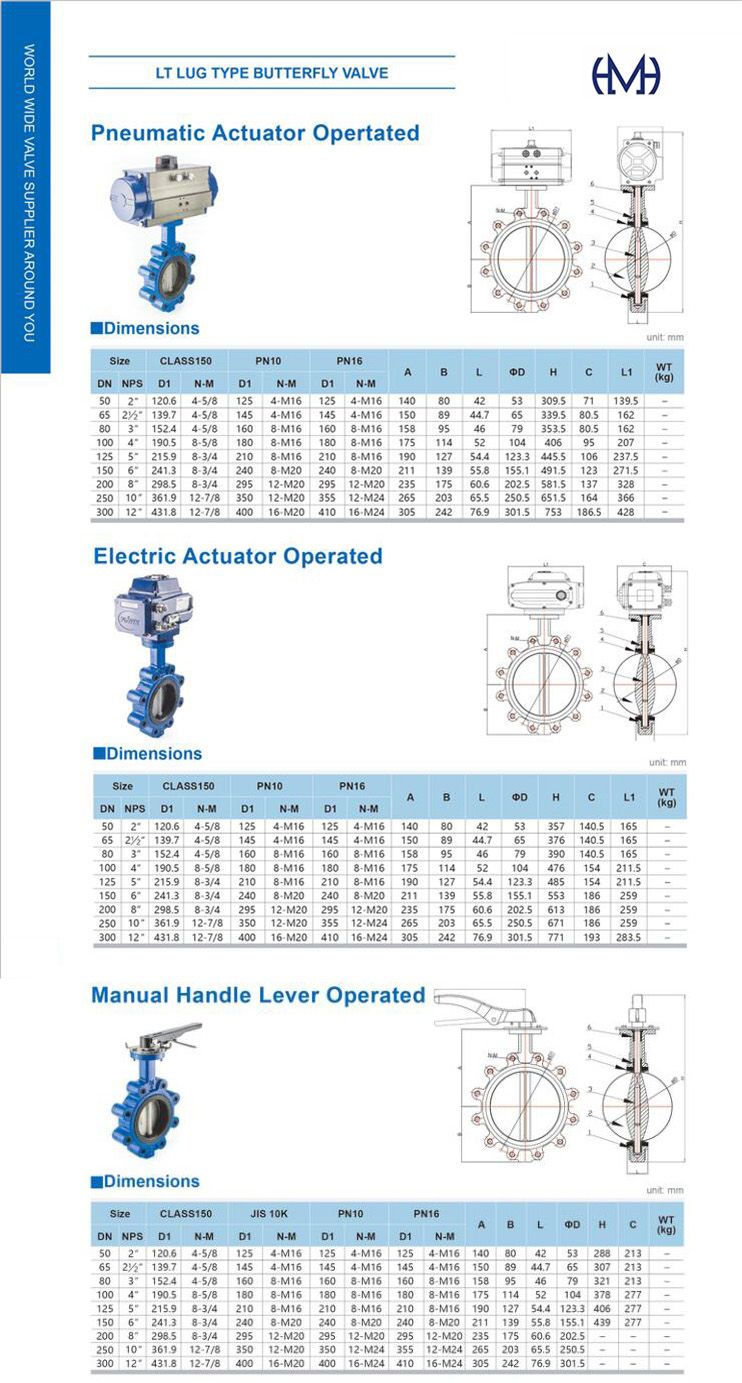

Please click here to refer the more detailed drawings in PDF file as below:
http://www.mihemachinery.com/uploadfile/2018/0620/20180620081601813.pdf
http://www.mihemachinery.com/uploadfile/2018/0620/20180620081636393.pdf
http://www.mihemachinery.com/uploadfile/2018/0620/20180620082016497.pdf
